As simple as water
Why Filtech for your home
COMPACTNESS
HIGH FLOW CAPACITY
FEW QUICK FITTINGS
TOUCH SCREEN DISPLAY
WI-FI IOT TECHNOLOGY
EASY MAINTENANCE
Our system plus point
Patented system
Vessel system VRO23
Maximum efficiency
given by the integrated system.
Patented design
made in Italy
Extremely easy
membrane change
Optimization of fitting systems
for maximum reliability
Double seal
for maximum safety
Designed to work in series
for maximum effectiveness
Savings on maintenance
and spare parts
Patented
system
Patented system
SMART DRAIN
Maximum system lifespan thanks to
automatic waste water management
Level between permeate
and drain always optimized
to the conditions
Constant working pressure
inside the system
Increased
membrane life
Reduction of technical call
and service
Savings on maintenance
and spare parts
Patented
system
Patented system
RO-CHECK
Total control of the system thanks to the wi-fi connection and the dedicated portal
Remote control of parameters
Notifications sending in case of alarms
Interaction with the system parameters
Integrated AI for system
parameter analysis
Simultaneous use of Wi-Fi,
mobile data or local network
(access point)
Savings on maintenance
and spare parts
RO-Check
ready
Patented system
PURO SYSTEM
Reduction of system maintenance times, thanks to the automatic sanitization.
Drastic reduction in system
sanitization time
Simplicity and ease of
replacement
Complete and safe
sanitization
Savings on maintenance
and spare parts
Easy
maintenance
Patented system

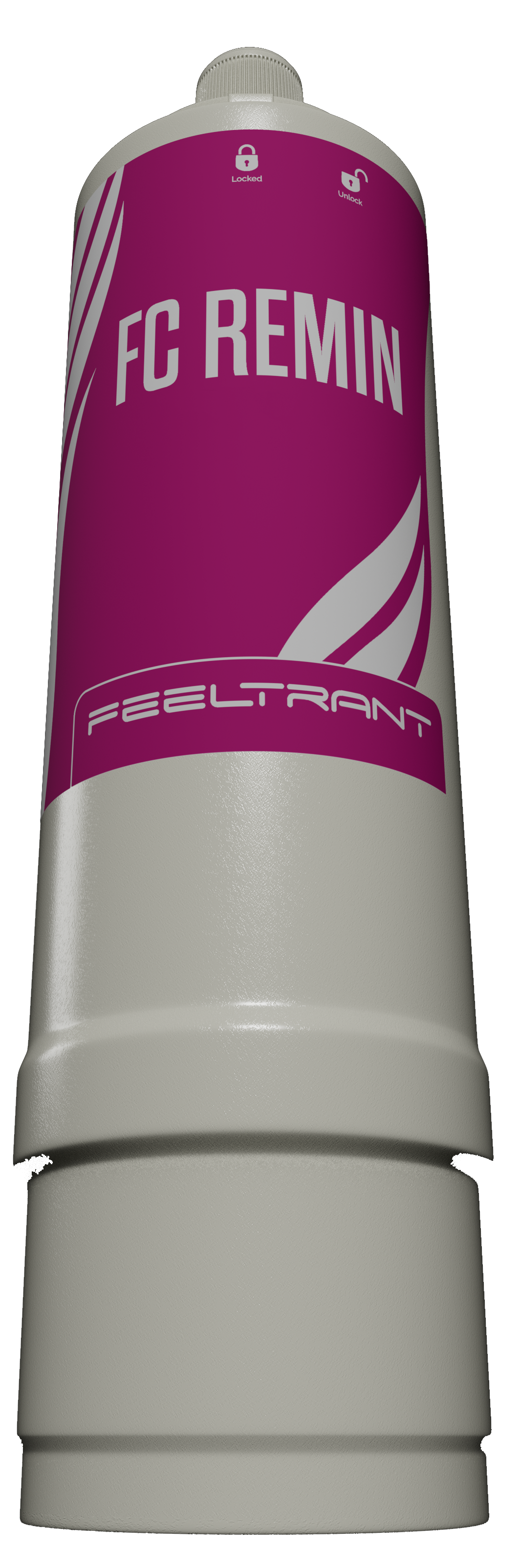

Remin FEELTRANT
No water waste, right from the first dispensing.
Avoids the PH peak
due to long contact
with minerals
Exclusive gradual
dosing system
Savings on maintenance
and spare parts
Easy
maintenance
Patented system
SAFE DROP
ANTIFLOODING SYSTEM
Total safety in case of water leaks
Raises the alarm in case of any type of flooding
Can be integrated
with the ROCHECK system
Immediate notification of alarms via the receiver (RO/Heedrop)
Blocking the incoming water flow block to anticipate the problem through an external solenoid valve
Savings on maintenance
and spare parts
RO-Check
ready
Patented system
HEEDROP FLOW METER
Total control of water consumption
Simplicity and effectiveness in reading the litres and water flow
Innovative technology
of flow rates reading
Wide reading range: from
a single coffee shot to
managing high flows
Integrated ROCHECK
remote control system
Savings on maintenance
and spare parts
RO-Check
ready
Patented technology for reverse osmosis
Products for your home
FLO LINE
Innovation meets design.
The FLO system is a patented technology that reach unprecedented flow rates with a minimum of space. It is a compact system that delivers up to 150 liters of water per hour in just 10.5 cm of space. Essential design and great attention to detail for a solution that combines aesthetics and functionality.
Flo TFT
DIRECT FLOW REVERSE OSMOSIS
The TFT is the most complete of the FLO line, with all the features of the range, from the flow rate up to 150 l / h to its compactness. This configuration has the reading of conductivity and the Wi-Fi module on board with the remote management, also via access point.
Features
- Innovative and compact design (10,5 cm)
- New VRO23 Vessel
- TFT screen
- Wi-Fi
- Filter alarm – time and liters
- Conductivity reading
- 15 min. alarm
- Flooding alarm
- Anti-stagnation system
- Membrane flushing
- Can be integrated with Safedrop anti-flooding system
FLO TFT
INTERNAL FILTER
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,9 kg
| MODELLO | CODICE | Portata | MEMBRANE | POMPA | FILTRAZIONE |
|---|---|---|---|---|---|
| FLO 100 TFT | 02FLT001 | 100 | 2 X 220 GPD | SILENT | Interna |
| FLO 130 TFT | 02FLT002 | 130 | 2 X 330 GPD | STANDARD | Interna |
| FLO 150 TFT | 02FLT003 | 150 | 2 X 330 GPD | SUPER | Interna |
FLO TFT
GAS
STILL AND SPARKLING
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 TFT GAS | 02FLT007 | 100 | 2 X 220 GPD | SILENT | External |
| FLO 130 TFT GAS | 02FLT008 | 130 | 2 X 330 GPD | STANDARD | External |
| FLO 150 TFT GAS | 02FLT009 | 150 | 2 X 330 GPD | SUPER | External |
FLO TFT
TANK
2 L INTERNAL TANK
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 TFT HF | 02FLT004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| FLO 130 TFT HF | 02FLT005 | 130 (+1 l) | 2 X 330 GPD | STANDARD | External |
| FLO 150 TFT HF | 02FLT006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
Flo LCD
DIRECT FLOW REVERSE OSMOSIS
The LCD has everything you need, compact and high performance up to 150 l / h with the display of all alarms, filter exhaust by liters and time, 15 minutes block, anti flood.
Features
- Innovative and compact design (10,5 cm)
- New VRO23 Vessel
- LCD screen
- Filter alarm – time and liters
- Optional conductivity reading
15 min. alarm - Flooding alarm
- Anti-stagnation system
- Membrane flushing
- Can be integrated with Safedrop anti-flooding system
FLO LCD
INTERNAL FILTER
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,9 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 LCD | 02FLL001 | 100 | 2 X 220 GPD | SILENT | Internal |
| FLO 130 LCD | 02FLL002 | 130 | 2 X 330 GPD | STANDARD | Internal |
| FLO 150 LCD | 02FLL003 | 150 | 2 X 330 GPD | SUPER | Internal |
FLO LCD
GAS
STILL AND SPARKLING
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 LCD GAS | 02FLL007 | 100 | 2 X 220 GPD | SILENT | External |
| FLO 130 LCD GAS | 02FLL008 | 130 | 2 X 330 GPD | STANDARD | External |
| FLO 150 LCD GAS | 02FLL009 | 150 | 2 X 330 GPD | SUPER | External |
FLO LCD
TANK
2 L INTERNAL TANK
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 LCD HF | 02FLL004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| FLO 130 LCD HF | 02FLL005 | 130 (+1 l) | 2 X 330 GPD | STANDARD | External |
| FLO 150 LCD HF | 02FLL006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
Flo B
DIRECT FLOW REVERSE OSMOSIS
The B version shares the compact design and high flow rates of the other versions with a lightened electronics exclusively with the filter alarm.
Features
- Innovative and compact design
- New VRO23 Vessel
- LCD screen
- Filter alarm – time and liters
- Can be integrated with Safedrop anti-flooding system
FLO B
INTERNAL FILTER
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,9 kg
| MODEL | CODE | Flow (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 B | 02FLB001 | 100 | 2 X 220 GPD | SILENT | Internal |
| FLO 130 B | 02FLB002 | 130 | 2 X 330 GPD | STANDARD | Interna |
| FLO 150 B | 02FLB003 | 150 | 2 X 330 GPD | SUPER | Internal |
FLO TFT
HF
2 L INTERNAL TANK
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 B HF | 02FLB004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| FLO 130 B HF | 02FLB005 | 130 (+1 l) | 2 X 330 GPD | STANDARD | External |
| FLO 150 B HF | 02FLB006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
FLO SMART LINE
DIRECT FLOW REVERSE OSMOSIS
The FLO SMART shares with the FLO line all the system advantages, high performance and flow rates, attractive design and WiFi connection.
Thanks to the new Fil.Tech patent, the SMART version is equipped with a dedicated filter that can be integrated into the vessel block, further reducing the size of the system.
Thanks to its sliding drawer for quick access to the consumables, maintenance is even easier. Its small size, 10.5 cm x 35 cm, makes this direct reverse osmosis the smallest on the market, it integrates perfectly into any space, without compromising the filtering capacity and flow rate, reaching up to 150 l/h.
VESSEL SMART SYSTEM
The compact revolution of the integrated system
Patented design made in Italy
Reduced dimensions to the minimum terms
Quick Access to the Vessel
Extremely easy filter and membrane changing
Optimizing fitting systems for maximum efficiency
Double seal for maximum safety
Designed to work in series for maximum effectiveness
FLO SMART TFT
Measures 43 cm x 35 cm x h 10,5 cm
Weight 7,9 kg
| MODEL | CODE | Flow (l/h) | MEMBRANE | Pump | Filtration |
|---|---|---|---|---|---|
| FLO SMART 60 TFT | 02FLT010 | 60 | 1 X 220 GPD | SILENT | Internal |
| FLO SMART 100 TFT | 02FLT011 | 100 | 1 X 330 GPD | STANDARD | Internal |
FLO SMART LCD
Measures 43 cm x 35 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO SMART 60 LCD | 02FLL021 | 60 | 2 X 220 GPD | SILENT | Internal |
| FLO SMART 100 LCD | 02FLL022 | 100 | 2 X 330 GPD | STANDARD | Internal |
FLO SMART B
Measures 43 cm x 35 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | Flow (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO SMART 60 B | 02FLB007 | 60 | 1 X 220 GPD | SILENT | Internal |
| FLO SMART 100 B | 02FLB008 | 100 | 1 X 330 GPD | STANDARD | Internal |
FLO SMART F TFT
Measures 43 cm x 35 cm x h 10,5 cm
Weight 7,9 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO SMART F 100 TFT | 02FLT012 | 100 | 2 X 220 GPD | SILENT | External |
| FLO SMART F 130 TFT | 02FLT013 | 130 | 2 X 330 GPD | STANDARD | External |
| FLO SMART F 150 TFT | 02FLT014 | 150 | 2 X 330 GPD | STANDARD | External |
FLO SMART F LCD
Measures 43 cm x 35 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO SMART F 100 LCD | 02FLL023 | 100 | 2 X 220 GPD | SILENT | External |
| FLO SMART F 130 LCD | 02FLL024 | 130 | 2 X 330 GPD | STANDARD | External |
| FLO SMART F 150 LCD | 02FLL025 | 150 | 2 X 330 GPD | STANDARD | External |
FLO SMART F B
Measures 43 cm x 35 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO SMART F 100 B | 02FLB009 | 100 | 2 X 220 GPD | SILENT | External |
| FLO SMART F 130 B | 02FLB010 | 130 | 2 X 330 GPD | STANDARD | External |
| FLO SMART F 150 B | 02FLB011 | 150 | 2 X 330 GPD | STANDARD | External |
HDO LINE
The HDO is the first born in Filtech house and can lodge all the configurations of the Flo line.
Therefore it is possible to have a different style but with all the technological advantages of the innovations provided by the new vessel, from the smart rejection to the 150 l / h flow with internal filter.
Flo TFT
DIRECT FLOW REVERSE OSMOSIS
The TFT is the most complete of the FLO line, with all the features of the range, from the flow rate up to 150 l / h to its compactness. This configuration has the reading of conductivity and the Wi-Fi module on board with the remote management, also via access point.
Features
- Innovative and compact design (10,5 cm)
- New VRO23 Vessel
- TFT screen
- Wi-Fi
- Filter alarm – time and liters
- Conductivity reading
- 15 min. alarm
- Flooding alarm
- Anti-stagnation system
- Membrane flushing
- Can be integrated with Safedrop anti-flooding system
FLO TFT
INTERNAL FILTER
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,9 kg
| MODELLO | CODICE | Portata | MEMBRANE | POMPA | FILTRAZIONE |
|---|---|---|---|---|---|
| FLO 100 TFT | 02FLT001 | 100 | 2 X 220 GPD | SILENT | Interna |
| FLO 130 TFT | 02FLT002 | 130 | 2 X 330 GPD | STANDARD | Interna |
| FLO 150 TFT | 02FLT003 | 150 | 2 X 330 GPD | SUPER | Interna |
FLO TFT
GAS
STILL AND SPARKLING
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 TFT GAS | 02FLT007 | 100 | 2 X 220 GPD | SILENT | External |
| FLO 130 TFT GAS | 02FLT008 | 130 | 2 X 330 GPD | STANDARD | External |
| FLO 150 TFT GAS | 02FLT009 | 150 | 2 X 330 GPD | SUPER | External |
FLO TFT
TANK
2 L INTERNAL TANK
Measures 43 cm x 45 cm x h 10,5 cm
Weight 7,8 kg
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 TFT HF | 02FLT004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| FLO 130 TFT HF | 02FLT005 | 130 (+1 l) | 2 X 330 GPD | STANDARD | External |
| FLO 150 TFT HF | 02FLT006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
HDO LCD
DIRECT FLOW REVERSE OSMOSIS
The HDO is the first born in Filtech house and can lodge all the configurations of the Flo line. Therefore it is possible to have a different style but with all the technological advantages of the innovations provided by the new vessel, from the smart rejection to the 150 l / h flow with internal filter.
Features
- New VRO23 Vessel
- LCD screen
- Filter alarm – time and liters
- Membrane flushing
- Optional conductivity reading
- 15 min. alarm
- Flooding alarm
- Anti-stagnation system
- Can be integrated with Safedrop anti-flooding system
HDO LCD
INTERNAL FILTER
Measures 43 cm x 44 cm x h 10,5 cm
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 LCD | 02HNL001 | 100 | 2 X 220 GPD | SILENT | Internal |
| HDO 130 LCD | 02HNL002 | 130 | 2 X 330 GPD | STANDARD | Internal |
| HDO 150 LCD | 02HNL003 | 150 | 2 X 330 GPD | SUPER | Internal |
| HDO 100 LCD HF | 02HNT004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| HDO 130 LCD HF | 02HNL005 | 130 (+1 l) | 2 X 220 GPD | STANDARD | External |
| HDO 150 LCD HF | 02HNL006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
| HDO 100 LCD GAS | 02HNL007 | 100 | 2 X 220 GPD | SILENT | External |
| HDO 130 LCD GAS | 02HNL008 | 130 | 2 X 330 GPD | STANDARD | External |
| HDO 150 LCD GAS | 02HNL009 | 150 | 2 X 330 GPD | SUPER | External |
HDO B
DIRECT FLOW REVERSE OSMOSIS
The HDO is the first born in Filtech house and can lodge all the configurations of the Flo line. Therefore it is possible to have a different style but with all the technological advantages of the innovations provided by the new vessel, from the smart rejection to the 150 l / h flow with internal filter.
Features
- New VRO23 Vessel
- LCD screen
- Filter alarm – time and liters
- Can be integrated with Safedrop anti-flooding system
HDO B
INTERNAL FILTER
Measures 43 cm x 44 cm x h 10,5 cm
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 B | 02HNB001 | 100 | 2 X 220 GPD | SILENT | Internal |
| HDO 130 B | 02HNB002 | 130 | 2 X 330 GPD | STANDARD | Internal |
| HDO 150 B | 02HNB003 | 150 | 2 X 330 GPD | SUPER | Internal |
| HDO 100 B HF | 02HNB004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| HDO 130 B HF | 02HNB005 | 130 (+1 l) | 2 X 330 GPD | STANDARD | External |
| HDO 150 B HF | 02HNB006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
HDO XS
DIRECT FLOW REVERSE OSMOSIS
HDO XS has been designed to meet space optimization requirements while maintaining the uniqueness of Filtech’s patented technologies. With a reduced size and an AISI 304 stainless steel case, the Hdo XS guarantees the performance, reliability and technical specifications of the Hdo. Thanks to the new Vessel 2310, it is possible to make the XS version on 100 / 130 / 150 L/h configurations.
- Can be integrated with Safedrop anti-flooding system
The machine comply with the requirements of european directives and is produced in compliance with DM174 06/04/2004 and DM25 of 07/02/12.
HDO XS
TFT
Measures 43,5 cm x 37,8 cm x h 9,6 cm
Wi-Fi
Filter alarm
Conductivity reading
Membrane flushing
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 TFT XS | 02FLT010 | 100 | 2 X 220 GPD | SILENT | Internal |
| HDO 130 TFT XS | 02FLT011 | 130 | 2 X 330 GPD | STANDARD | Internal |
| HDO 150 TFT XS | 02FLT012 | 150 | 2 X 330 GPD | SUPER | Internal |
HDO XS
LCD
Measures 43,5 cm x 37,8 cm x h 9,6 cm
Filter alarm
Conductivity reading
Membrane flushing
Can be integrated with Safedrop anti-flooding system
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 B XS | 02FLT007 | 100 | 2 X 220 GPD | SILENT | External |
| HDO 130 B XS | 02FLB008 | 130 | 2 X 330 GPD | STANDARD | External |
| HDO 150 B XS | 02FLB009 | 150 | 2 X 330 GPD | SUPER | External |
HDO XS
B
Measures 43,5 cm x 37,8 cm x h 9,6 cm
Filter alarm
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| FLO 100 TFT HF | 02FLT004 | 100 (+1 l) | 2 X 220 GPD | SILENT | External |
| FLO 130 TFT HF | 02FLT005 | 130 (+1 l) | 2 X 330 GPD | STANDARD | External |
| FLO 150 TFT HF | 02FLT006 | 150 (+1 l) | 2 X 330 GPD | SUPER | External |
HDO XXS
DIRECT FLOW REVERSE OSMOSIS
The XXS is reverse osmosis realized on the lim its of feasibility. It provides maximum flexibility during installation and, by placing the filt er externally, with the Vessel VRO23, it is possible to achieve a flow rate of up to 150 l/ h. The XXS has been designed having in mind all the installation difficulties that even modern kitchens offer.
- Can be integrated with Safedrop anti-flooding system
- Filter supplied
The machine comply with the requirements of european directives and is produced in compliance with DM174 06/04/2004 and DM25 of 07/02/12.
HDO XXS
TFT
Measures 33,5 cm x 37,8 cm x h 9,6 cm
Wi-Fi
Filter alarm
Conductivity reading
Membrane flushing
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 TFT XXS | 02FLT013 | 100 | 2 X 220 GPD | SILENT | Internal |
| HDO 130 TFT XXS | 02FLT014 | 130 | 2 X 330 GPD | STANDARD | Internal |
| HDO 150 TFT XXS | 02FLT015 | 150 | 2 X 330 GPD | SUPER | Internal |
HDO XXS
LCD
Measures 33,5 cm x 37,8 cm x h 9,6 cm
Filter alarm
Conductivity reading
Membrane flushing
Can be integrated with Safedrop anti-flooding system
| MODEL | CODE | FLOW (l/h) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 LCD XXS | 02FLL025 | 100 | 2 X 220 GPD | SILENT | Esterna |
| HDO 130 LCD XXS | 02FLL026 | 130 | 2 X 330 GPD | STANDARD | Esterna |
| HDO 150 LCD XXS | 02FLL027 | 150 | 2 X 330 GPD | SUPER | Esterna |
HDO XXS
B
Measures 33,5 cm x 37,8 cm x h 9,6 cm
Filter alarm
| MODEO | CODE | FLOW (L/H) | MEMBRANE | PUMP | FILTRATION |
|---|---|---|---|---|---|
| HDO 100 B XXS | 02FLB010 | 100 | 2 X 220 GPD | SILENT | Esterna |
| HDO 130 B XXS | 02FLB011 | 130 | 2 X 330 GPD | STANDARD | External |
| HDO 150 B XXS | 02FLB012 | 150 | 2 X 330 GPD | SUPER | External |
HDO EASY
TANK REVERSE OSMOSIS RESIDENTIAL
The Hdo Easy, 5 or 6 filtration stage, offers an alternative to direct flow machines. Hdo Easy mounts the patented Filtech Vessel that distinguishes all the Hdo but is based on the technology of the external storage tank. Pre and post filtration are mounted on bayonet brackets and all the technology of this machine has been studied, produced and tested by us in Italy to give real results on the quality of the treated water.
The machine comply with the requirements of european directives and is produced in compliance with DM174 06/04/2004 and DM25 of 07/02/12.
- Filter supplied
HDO EASY
5 STAGES
EASY REPLACEMENT KIT
Hdo Easy consists of 5 basic stages: pre-filtration at 5 μm and coconut, the third step is on the osmotic membrane and the last 2 in post-treatment with coconut and microfiltration at 0.5 μm.
1st Stage
5μm Sediment Filtration
2nd Stage
Coconout shell Carbon
3rd Stage
Reverse Osmosis membrane
4th Stage
0,5 μm Micro – Filtration
5th Stage
Post Filtration with Coconout shell Carbon
| MODEL | CODE | DESCRIPTION | MEMBRANE | TANK CAPACITY | WEIGHT |
|---|---|---|---|---|---|
| Hdo EASY | 01EHY001 | 5 STAGE OSMOSIS | 75 GPD | 12 L / 3,2G | 3,7 |
WS5C
Easy Carbon 5
WS5P
Easy Micro 5
HDO EASY
6 STAGES
EASY REPLACEMENT KIT
Hdo Easy Plus è composta di 6 stadi fondamentali: prefiltrazione a 5μm e carbone di cocco il terzo passaggio è sulla membrana osmotica e gli ultimi 3 in post-trattamento con carbone di cocco, filtrazione a 5μm ed infine la barriera ultrafiltrante antibatterica a 0,01 μm.
1st Stage
5μm Sediment Filtration
2nd Stage
Coconout shell Carbon
3rd Stage
Reverse Osmosis membrane
4th Stage
5 μm Sediment Filtration
5th Stage
Post Filtration with Coconout shell Carbon
6th Stage
0,01 μm Ultra Filtration
| MODEL | CODE | DESCRIPTION | MEMBRANE | TANK CAPACITY | WEIGHT |
|---|---|---|---|---|---|
| Hdo EASY PLUS | 01EHY002 | 6 STAGE OSMOSIS | 75 GPD | 12 L / 3,2G | 3,7 |
WS5C
Easy Carbon 5
WS001
Ultra filtration
GAIA LINE
FILTRATION DEVICE
Gaia is an innovative compact household water treatment system with various filtration stages, which always ensures the delivery of high quality water.
Gaia B
FILTRATION DEVICE
Features
- Filter alarm time
- LCD screen
- Filter alarm liters
- Up to 0,1 μm filtration
The machine comply with the requirements of european directives and is produced in compliance with DM174 06/04/2004 and DM25 of 07/02/12.
GAIA 2S
internal filter
| MODEL | CODE | ALARM MANAGEMENT | FLOW (l/h) | FILTRATION DEGREE | FILTERS |
|---|---|---|---|---|---|
| GAIA MR 05 AG LCD | 02GDM001 | FULL | 300 l/h | 0,1 μm | FP 130 + FC 135 AG |
| GAIA MR 05 AG B | 02GDM002 | READING | 300 l/h | 0,1 μm | FP 130 + FC 135 AG |
| GAIA UF LCD | 02GDU001 | FULL | 300 l/h | 0,1 μm | FC 130 + FU 15-01 |
| GAIA UF B | 02GDU002 | READING | 300 l/h | 0,1 μm | FC 130 + FU 15-01 |
GAIA 3S
internal filter
| MODEL | CODE | ALARM MANAGEMENT | FLOW (l/h) | FILTRATION DEGREE | FILTERS |
|---|---|---|---|---|---|
| GAIA 3S UF LCD | 03GDU001 | FULL | 300 l/h | 0,1 μm | FP 130 + FC 130 + FU 15-01 |
| GAIA 3S UF B | 03GDU002 | READING | 300 l/h | 0,1 μm | FP 130 + FC 130 + FU 15-01 |
Gaia LCD
FILTRATION DEVICE
Features
- Allarme filtro tempo
- Schermo LCD
- Allarme antiallagamento
- Allarme filtro litri
- Filtrazione fino a 0,1 μm
- Blocco antiallagamento
The machine comply with the requirements of european directives and is produced in compliance with DM174 06/04/2004 and DM25 of 07/02/12.
GAIA 2S
internal filter
| MODELLO | CODICE | GESTIONE ELETTRONICA | Portata (l/h) | GRADO DI FILTRAZIONE | FILTRI |
|---|---|---|---|---|---|
| GAIA MR 05 AG LCD | 02GDM001 | COMPLETA | 300 l/h | 0,1 μm | FP 130 + FC 135 AG |
| GAIA MR 05 AG B | 02GDM002 | SOLO LETTURA | 300 l/h | 0,1 μm | FP 130 + FC 135 AG |
| GAIA UF LCD | 02GDU001 | COMPLETA | 300 l/h | 0,1 μm | FC 130 + FU 15-01 |
| GAIA UF B | 02GDU002 | SOLO LETTURA | 300 l/h | 0,1 μm | FC 130 + FU 15-01 |
GAIA 3S
internal filter
| MODELLO | CODICE | GESTIONE ELETTRONICA | Portata (l/h) | GRADO DI FILTRAZIONE | FILTRI |
|---|---|---|---|---|---|
| GAIA 3S UF LCD | 03GDU001 | COMPLETA | 300 l/h | 0,1 μm | FP 130 + FC 130 + FU 15-01 |
| GAIA 3S UF B | 03GDU002 | SOLO LETTURA | 300 l/h | 0,1 μm | FP 130 + FC 130 + FU 15-01 |
AFRODITE LINE
Under sink water filtration
The Afrodite line is a mechanical ultra and micro filtration system that can be conveniently installed under the sink.
Afrodite double
Double bracket under sink filtration system with lcd screen.
| MODEL | CODE | ALARM MANAGEMENT | FLOW (l/h) | FILTRATION DEGREE | FILTERS |
|---|---|---|---|---|---|
| AFRODITE UF DOUBLE BASE | 02KAT005 | NONE | 300 l/h | 0,1 μm | FC 130 + FU 15-01 |
| AFRODITE SILVER DOUBLE BASE | 02KAT006 | NONE | 300 l/h | 0,5 μm | FP 130 + FC 135 AG |
| AFRODITE UF DOUBLE | 02KAT001 | FILTER ALARM – LCD | 300 l/h | 0,1 μm | FC 130 + FU 15-01 |
| AFRODITE SILVER DOUBLE | 02KAT002 | FILTER ALARM – LCD | 300 l/h | 0,5 μm | FP 130 + FC 135 AG |
FP 130
Polypropylene staple sediment filter that remove particles larger than 5 μm, for a better protection in case of sediment-rich water.
Sediment 5 μm
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILBA002
FC 135 AG
Better taste and odor of the water thanks tothe active carbon, that remove a vast range of pollutants such as chlorine, benzene, chloroform, 1-2 dicloretanos, etc. sediment filtering action on particles greater than 0.5 μm and a bacteriostatic action. This filter alone already meets many needs for a better drinking water.
Bacteriostatic
Carbon block 0,5 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILBA004
FC 130
The active coconut carbons have the effect of removing a wide range of pollutants such as chlorine, benzene, chloroform, 1-2 dichlorethane, etc. For a more pleasant water free from unwanted odors and flavors. In addition, this filter also has a sediment removal action greater than 5 μm.
Carbon block 5 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILBA002
FU 15-01
Hollow fiber ultrafiltration for particles larger than 0.1 μm. The MU 15-01 give the advantage of having a protective barrier against the bacteria for the water of your home.
Ultrafiltration 0,1 μm
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILBA027
Afrodite mini-double
Double bracket under sink filtration system with lcd screen.
| MODEL | CODE | ALARM MANAGEMENT | FLOW (l/h) | FILTRATION DEGREE | FILTERS |
|---|---|---|---|---|---|
| AFRODITE UF MINI DOUBLE BASE | 02KAT007 | NONE | 300 l/h | 0,1 μm | MC 130 + MU 15-01 |
| AFRODITE SILVER MINI DOUBLE BASE | 02KAT008 | NONE | 300 l/h | 0,5 μm | MP 130 + MC 135 AG |
| AFRODITE UF DOUBLE | 02KAT009 | FILTER ALARM – LCD | 300 l/h | 0,1 μm | MC 130 + MU 15-01 |
| AFRODITE SILVER DOUBLE | 02KAT010 | FILTER ALARM – LCD | 300 l/h | 0,5 μm | MP 130 + MC 135 AG |
MP 130
Polypropylene staple sediment filter that remove particles larger than 5 μm, for a better protection in case of sediment-rich water.
Sediment 5 μm
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILMI005
MC 135 AG
Better taste and odor of the water thanks tothe active carbon, that remove a vast range of pollutants such as chlorine, benzene, chloroform, 1-2 dicloretanos, etc. sediment filtering action on particles greater than 0.5 μm and a bacteriostatic action. This filter alone already meets many needs for a better drinking water.
Bacteriostatic
Carbon block 0,5 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILMI002
MC 130
The active coconut carbons have the effect of removing a wide range of pollutants such as chlorine, benzene, chloroform, 1-2 dichlorethane, etc. For a more pleasant water free from unwanted odors and flavors. In addition, this filter also has a sediment removal action greater than 5 μm.
Carbon block 5 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILMI001
MU 15-01
Hollow fiber ultrafiltration for particles larger than 0.1 μm. The MU 15-01 give the advantage of having a protective barrier against the bacteria for the water of your home.
Ultrafiltration 0,1 μm
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILMI006
Afrodite single
Under sink ultra filtration system.
| MODEL | CODE | ALARM MANAGEMENT | FLOW (l/h) | FILTRATION DEGREE | FILTERS |
|---|---|---|---|---|---|
| AFRODITE SMART | 01KAF005 | LECTRONIC FAUCET | 300 l/h | 0,1 μm | FCU 15-01 |
| AFRODITE SILVER | 01KAF002 | LECTRONIC FAUCET | 300 l/h | 0,5 μm | FC 135 AG |
| AFRODITE SMART BASE | 01KAF006 | NONE | 300 l/h | 0,1 μm | FCU 15-01 |
| AFRODITE SILVER BASE | 01KAF003 | NONE | 300 l/h | 0,5 μm | FC 135 AG |
FCU 15-01
The active coconut carbons have the effect of removing a wide range of pollutants such as chlorine, benzene, chloroform, 1-2 dichlorethane, etc. For a more pleasant water free from unwanted odors and flavors. In addition, this filter also has a sediment removal action greater than 5 μm. with 0.1 antibacterial barrier.
Carbon block 5 μm
Ultrafiltration 0,1 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILBA040
FC 135 AG
Better taste and odor of the water thanks tothe active carbon, that remove a vast range of pollutants such as chlorine, benzene, chloroform, 1-2 dicloretanos, etc. sediment filtering action on particles greater than 0.5 μm and a bacteriostatic action. This filter alone already meets many needs for a better drinking water.
Bacteriostatic
Carbon block 0,5 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILBA004
RUBIN006
electronic
Electronic faucet for filter management.
SILVER: COD. 01KAF002
RUBIN001
mechanic
Mechanical tap in AISI 304 stainless steel for filter management.
SILVER: COD. 01KAF003
Afrodite mini-single
Under sink ultra filtration system.
| MODEL | CODE | ALARM MANAGEMENT | FLOW (l/h) | FILTRATION DEGREE | FILTERS |
|---|---|---|---|---|---|
| AFRODITE MINI SINGLE SMART | 01KAF009 | ELECTRONIC FAUCET | 300 l/h | 0,1 μm | MCU 15-01 |
| AFRODITE MINI SINGLE SILVER | 01KAF010 | ELECTRONIC FAUCET | 300 l/h | 0,5 μm | MC 135 AG |
| AFRODITE MINI SINGLE SMART BASE | 01KAF011 | NONE | 300 l/h | 0,1 μm | MCU 15-01 |
| AFRODITE MINI SINGLE SILVER BASE | 01KAF012 | NONE | 300 l/h | 0,5 μm | MC 135 AG |
FCU 15-01
The active coconut carbons have the effect of removing a wide range of pollutants such as chlorine, benzene, chloroform, 1-2 dichlorethane, etc. For a more pleasant water free from unwanted odors and flavors. In addition, this filter also has a sediment removal action greater than 5 μm. with 0.1 antibacterial barrier.
Carbon block 5 μm
Ultrafiltration 0,1 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILMI011
FC 135 AG
Better taste and odor of the water thanks tothe active carbon, that remove a vast range of pollutants such as chlorine, benzene, chloroform, 1-2 dicloretanos, etc. sediment filtering action on particles greater than 0.5 μm and a bacteriostatic action. This filter alone already meets many needs for a better drinking water.
Bacteriostatic
Carbon block 0,5 μm
- Capacity 12.000 l
- Flow 300 I /h
- Temperature range 5 / 38° C
- Max pressure 6 bar
- Maximum duration: 1 year after installation
Cod. FILMI002
RUBIN006
electronic
Electronic faucet for filter management.
SILVER: COD. 01KAF002
RUBIN001
mechanic
Mechanical tap in AISI 304 stainless steel for filter management.
SILVER: COD. 01KAF003
HEEDROP SYSTEM
Flow meter with the management, also from remote, of drinking water filtering systems with wifi connection
Heedrop has the possibility of programming the system via an integrated web interface and the management of it via a dedicated portal.
Like all ROCheck system devices, it is possible, not only of a simple reading of some parameters, but also of interacting with the filtering system, establishing the way in which it has to work, there is the possibility of monitoring all the systems installed. The reader is in any case not bound to the web part but can also be configured from its display. Thanks to its innovative technology, Heedrop can read a wide range of flow rates down to values as low as an espresso shot.
Also optional is the anti-flooding module with external control of a shut-off solenoid valve, to completely shut off the system for greater safety. This module also has the option of being integrated into the ROCheck system for remote monitoring.
SAFEDFROP SYSTEM
EXTERNAL ANTI-FLOODING SYSTEM
SAFEDROP is an integrated anti-flooding safety system capable of giving alarms in the event of water leaks, not only from water treatment devices, but from any device present in the room. It can be connected to data networks to send notifications and, last but not least, it can manage an external solenoid valve to block incoming water and avoid damage or waste of water.
